TECHNICAL SPECIFICATION

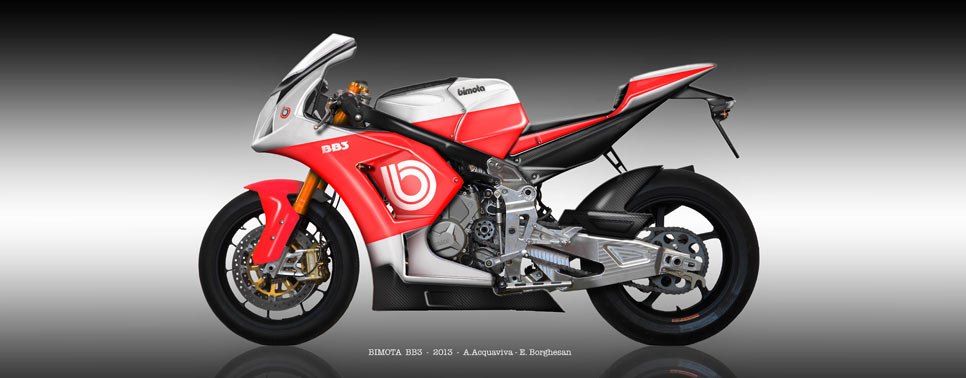

Bimota BB3
- Chassis
- Trellis frame, with rear engine mounts made from machined aluminium billets
- Engine
- BMW, inline, 4 cylinder, 4-stroke, 16 valves, 999cc
- Bore & Stroke
- 80 x 49.7mm
- Compression ratio
- 13:1
- Fuel system
- Electronic ignition
- Power
- 198HP
- Gearbox
- 6 speed
- Clutch
- Multi-disc, with antislip system
- Front suspension
- Ohlins 43mm, adjustable pre-load, rebound and compression
- Rear suspension
- Ohlins monoshock, adjustable pre-load, rebound and compression
- Swing arm
- Aluminium, with adjustable pivot
- Dry weight
- 168 kgs
- Front brake
- Nissin, twin discs, 320mm
- Rear brake
- Nissin, single disc, 220mm
- Wheels
- OZ front 17 x 3.50”, rear 17 x 6.00”
- Overall length
- 2075mm
- Seat height
- 820mm
- Wheelbase
- 1430mm
- Fuel tank capacity
- 23 litres
